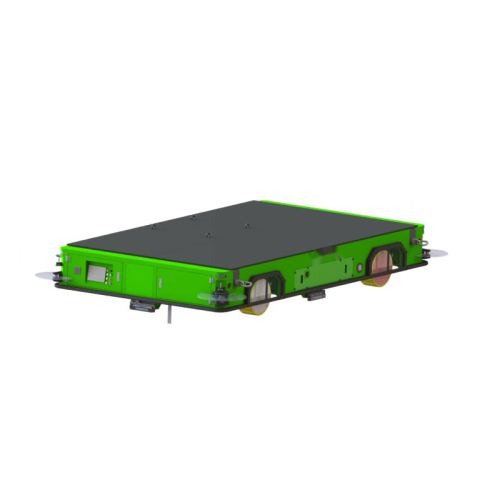

60Ton Heavy-Duty AGV for OEM, ODM, Wholesale
- Model
- LY-1-60T-48-A
Item specifics
- Rated load
- 50T
- Equipment weight
- 80T
- Lifting stroke
- 100mm
- Climbing ability
- ≤5°
- Travel speed
- 0-30m/min
- Navigation accuracy
- ±10mm
Review
Description
Product model ：LY-1-60T-48-A
Rated load (kg) ：50000
Equipment weight (kg) :8000
Body shape (mm): L4500mm*2522*670mm (subject to the joint signature drawing)
Lifting stroke (mm) :100mm
Climbing ability (°) :≤5°
Working environment :Indoor and outdoor operation
Body structure :Differential drive
Number of driving wheels (pairs) :Four-wheel drive eight-wheel
Operation mode :The whole vehicle can realize forward and backward straight driving, left and right straight driving, rotation in place, and turning movement in the plane under no-load and full-load conditions
Drive motor type :Low-voltage servo motor + independent servo controller
Suspension type: 1. Hydraulic suspension;
Passive suspension, reliable performance, so that multiple wheels are evenly stressed.
Travel speed :0-30m/min
Battery type :Lithium iron phosphate battery, battery life 6 hours each when empty and full
Navigation accuracy (mm) :±10
Navigation mode :Magnetic stripe/laser + magnetic stripe/laser + QR code composite navigation
Control mode :Automatic dispatch + wireless remote control
Safety protection :Laser obstacle avoidance sensor + contact anti-collision + sound and light warning + emergency stop
Charging method :Automatic charging
Braking distance (mm): Full load braking ≤500mm, no load braking distance ≤300mm
Protection level :IP44
