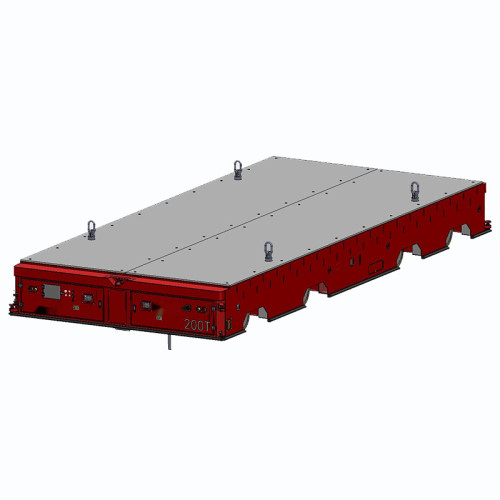

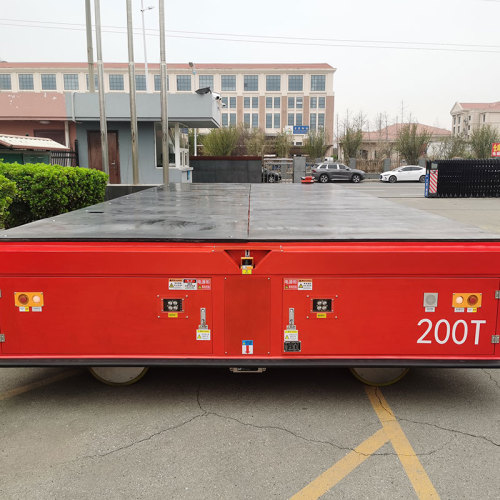

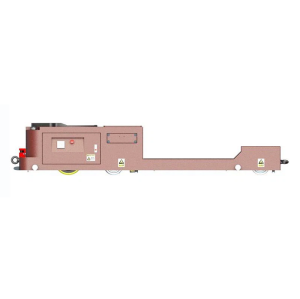

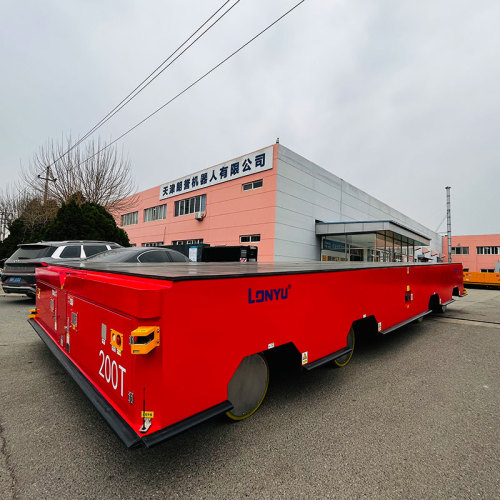

200ton-Heavy-duty-AGV-backpack-transmission-box
- Model
- LY-1-20 0T -816-A
Item specifics
- Rated load
- 200T
- Quipment weight
- 35T
- Body shape
- L8100 *W3500 *H870
- Lifting stroke
- 200mm _ Climbing ability(°) ≤5°
- Working environment
- Indoor and outdoor work
- Body structure
- differential drive
- Number of driving wheels (pair)
- Eight-wheel drive and sixteen wheels
- Operation mode
- The whole vehicle can realize forward and backward
Review
Description
Drive motor type： Low voltage servo motor + independent servo controller
hanging form
1.Hydraulic suspension;
2.It is a passive suspension with reliable performance and even stress on multiple wheels. Walking speed 0-30 meters/min
battery form Lithium Iron Phosphate Battery , 96V/ 600 AH
Navigation Magnetic stripe navigation , inching accuracy ±3mm
control method ：wireless remote
Security
Laser obstacle avoidance sensor + contact collision avoidance + sound and light warning + emergency stop
charging method ：Manual charging
Braking distance (mm) ：Full load braking ≤500mm, no-load braking distance ≤300mm
Protection level： IP44 /IP65
