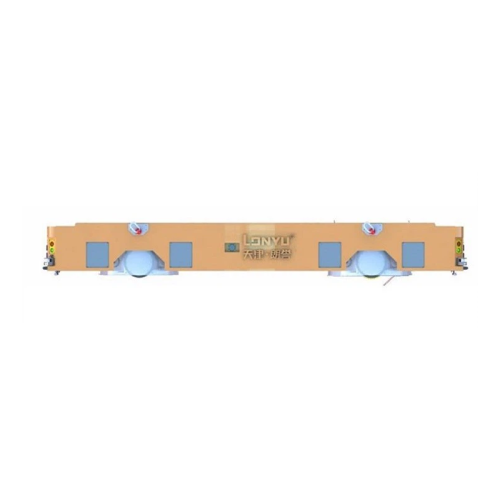

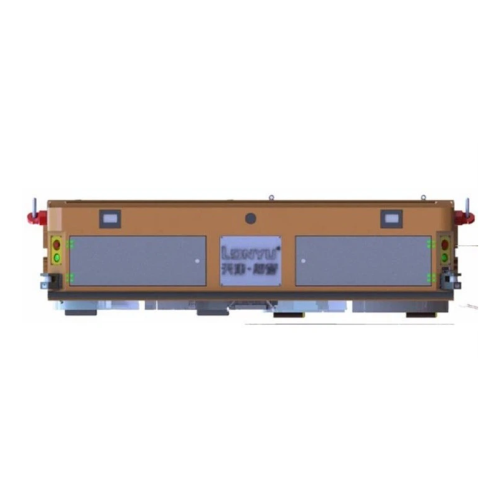

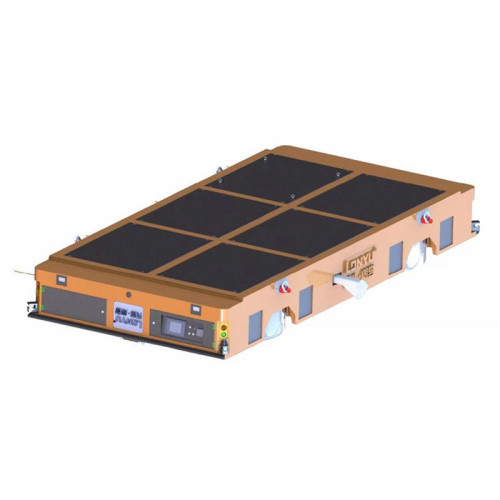

40Ton-omnidirectional-lifting-AGV
- Model
- LY-AU-40T-4-0A
Item specifics
- Product Weight
- 15T
- Load Weight
- 40T
- Product Size
- L5500*W2650*H730
- Suspension Type
- Hydraulic
- Voltage
- 96V
Review
Description
Automatic Guided Vehicle
Automatic guided vehicle systems, also known as an AGV system, otherwise known as an automated guided vehicle, autonomous guided vehicles, or even automatic guided cart, is a system that follows a predestined path around a facility. An AGV automated guided vehicle is a motorized vehicle that carries a load through either an assembly, manufacturing, or warehousing facility. An AGV can take on any form a customer requires to best address their application needs.
Advantages of AGV:
1.Efficiency improvement: 24-hour continuous operation, reduced dependence on manual labor, and shortened production cycle.
2.Safety: Avoid manual operation errors and reduce the risk of work-related injuries.
3.Flexibility and scalability: Quickly adjust paths and tasks to adapt to changes in production lines.
4.Cost optimization: Reduce manpower, equipment maintenance and site occupation costs.
5.Data-driven: Real-time monitoring of transportation status and optimization of production processes.
| Product Name | Heavy duty omni direction AGVs |
|---|---|
| Model Number | LY-AU-40T-4-0A |
| Product Weight | 15T |
| Load Weight | 40T |
| Product Size | L5500*W2650*H730 |
| Drive Unit Type | Superdrive |
| Drive Unit Number | 4-Drive |
| Drive Unit Load Weight | 15T |
| Remote Control | Manual Remote |
| Navigation Type | Magnetic Stripe |
| Lift Ability | Yes/Overall |
| Castor | 0 |
| Linkage Mode | Single AGV |
| Frame Structure | Tubesheet |
| Suspension Type | Hydraulic |
| Turning Radius | Rotate on spot |
| Voltage | 96V |
| Range/Battery | 450AH |
| Fixture/Tooling | / |
| Explosion-proof level | – |
| Explosion-proof or not | No |
| Safety Features | Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, Safety Laser Scanner |
Automatic Guided Vehicle Application
- Manufacturing Industry
Automotive Industry: Transporting car bodies, engines, large molds, etc., supporting flexible production lines.
Heavy Machinery Manufacturing: Transporting large castings, welded parts or assembly components.
Metallurgical Industry: Transporting steel coils, steel plates, and high-temperature metal materials.
Chemical industry: transporting reactors, large storage tanks or hazardous chemicals.
- Logistics and warehousing
Ports/airports: automated loading and unloading and stacking of containers and large goods.
Large warehouses: storage and sorting of palletized heavy goods.
Railway freight: cooperate with gantry cranes to carry out cargo handling in carriages.
- Special industrial environments
High-temperature workshops: such as transporting high-temperature steel billets in steel plants.
Explosion-proof scenarios: transportation of flammable and explosive materials in the oil and gas industry.
Clean environment: heavy wafer handling in clean rooms in semiconductor factories.
- New energy and infrastructure
Wind power industry: in-plant transportation of super-large components such as blades and towers.
Battery production: handling heavy battery modules or energy storage equipment.
Infrastructure engineering: automated transportation of prefabricated components and building materials.
- Flexible production lines
Linked with robots and CNC machine tools to achieve precise cross-station delivery of heavy-loaded workpieces and support the construction of “dark factories”.
