OEM & ODM Mini Excavators for Distributors - Superior Agricultural Equipment Solutions with Extensive After-Sales Support and Comprehensive Spare Parts Supply for Importers and Wholesalers
- Model
- JH8022 Crawler Excavator
Item specifics
- Lenght*Width*height
- 4170 x 1300 x 2270 mm
- Rated Power
- 22(kw)
- Bucket Capacity
- 0.1(m3)
- Overall Weight
- 2200(kg)
Review
Description

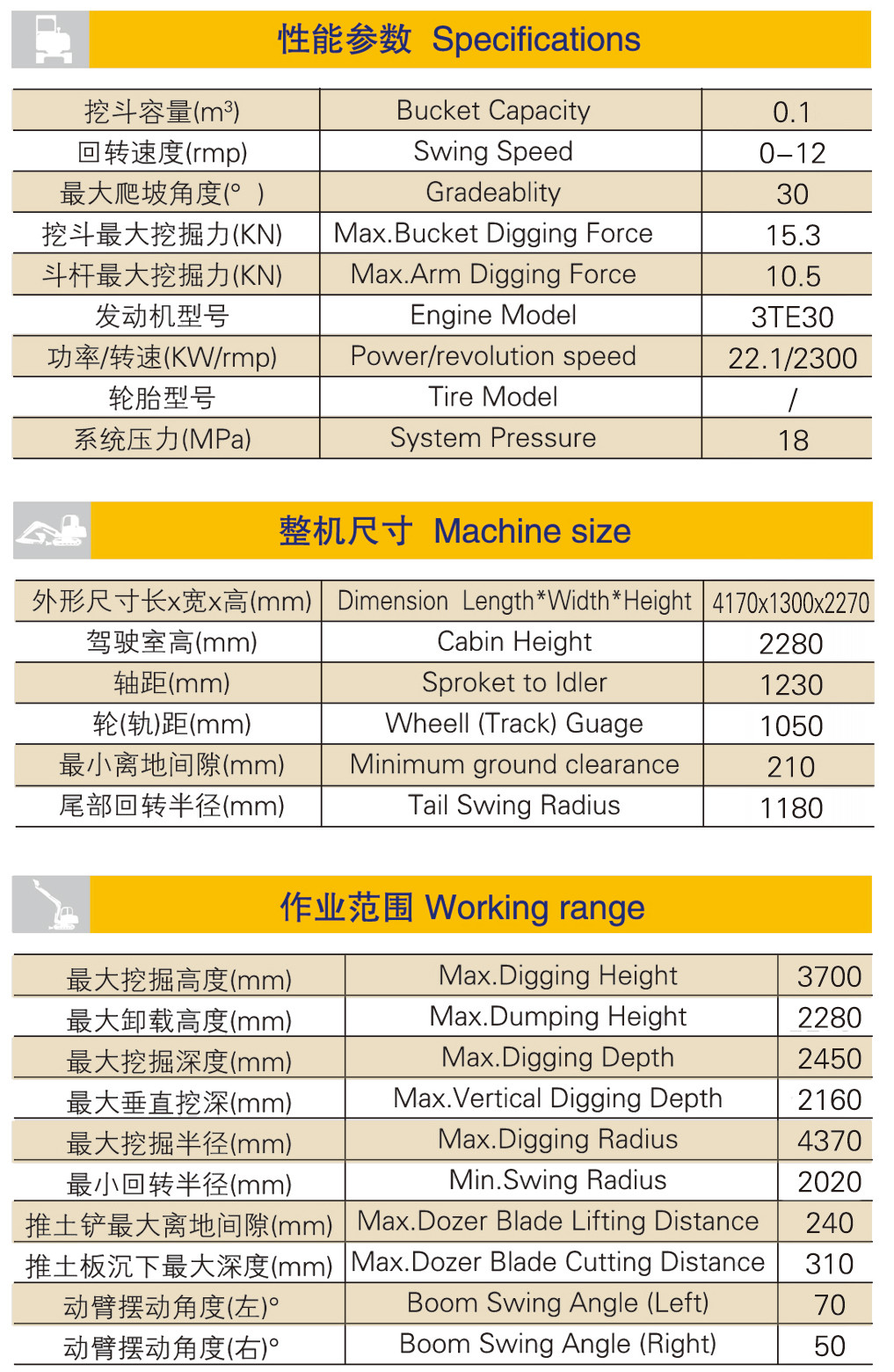

| Specifications | ||
| Bucket Capacity: 0.1 m3 | Max.Bucket Digging Force 15.3 KN | Power/revolution spend: 22.1/2300 |
| Swing Speed: 0-12 rmp | Max.Arm Digging Force:10.0 KN | Tire Model:/ |
| Gradeablity: 30 | Engine Model:3TE30 | System Pressure:18 |
| Machine size | ||
| Dimension Length*Width*Height:4170x1300x2270 | Sproket to ldler:1230mm | Minmum ground clearance:210mm |
| Cabin Height:2280 mm | Wheell(Track) Guage:1050mm | Tail Swing Raduis:1180mm |
| Working range | ||
| Max.Digging Height:3700mm | Max.Vertical Digging Depth:2160mm | Max.Dozer Blade Lifting Distance : 240mm |
| Max.Dumping Height:2280mm | Max.Digging Radius:4370mm | Max.Dozer Blade Cutting Distance:310mm |
| Max.Digging Depth:2450mm | Min.Swing Radius:2020mm | Boom Swing Angle(Left):70mm |
Boom Swing Angle(Right):70mm | ||
