High-Quality Mini Crawler Excavator for OEM/ODM Suppliers | Wholesale & Distributor Opportunities | Reliable Performance & Extensive Spare Parts Support
- Model

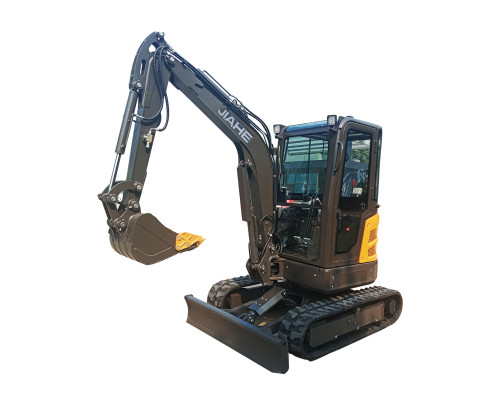

- JH8027 Crawler Excavator
Item specifics
- Rated Power
- 14(kw)
- Bucket Capacity
- 0.1(m3)
- Overall Weight
- 2700(kg)
Review
Description
| Specifications | ||
| Bucket Capacity : 0.1 m3 | Swing Speed:1-10 rmp | Gradeablity: 58 |
| Max.Bucket Digging Force: 23.5 KN | Max.Arm Digging Force: 14KN | Engine Model: D1105-E4B |
| Power/revolution speed: 14/2000(KW/rmp) | Tire Model: - | System Pressure: 20.5(MPa) |
Machine size | ||
Dimension Length*Width*Height: 4195x1550×2480 mm | Cabin Height: 2480 mm | Axle Base: 1563 mm |
Wheel(track) Distance: 1250 mm | Minimum ground clearance: 285 mm | Tail Swing Radius: 860 mm |
Working range | ||
Max.Digging Height: 4427 mm | Max.Dumping Height:3005 mm | Max.Digging Depth: 2830 mm |
Max.Vertical Digging Depth: 2500 mm | Max.Digging Radius: 4835 mm | Min.Swing Radius: 2160 mm |
Max.Dozer Blade Lifting Distance: 308 mm | Max.Dozer Blade Cutting Distance: 360 mm | |
