Wholesale OEM & ODM Mini Excavators - Dependable Agricultural Equipment with Exceptional After-Sales Services & Extensive Spare Parts Availability for Distributors and Importers
- Model

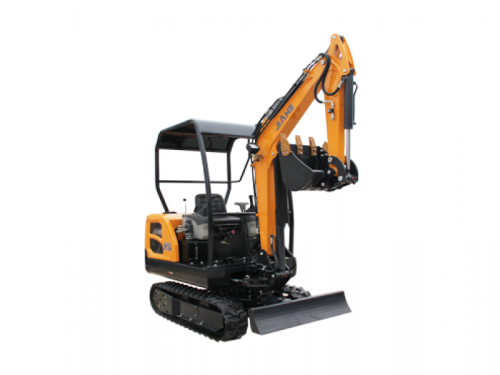

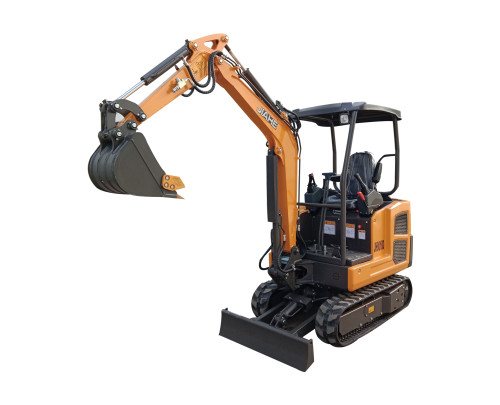

- JH8018 Crawler Excavator
Item specifics
- Rated Power
- 18.4 kw
- Bucket Capacity
- 0.06 m3
- Overall Weight
- 1800 kg
Review
Description
| Specifications | |
Bucket Capacity : 0.06 m3 | Swing Speed: 10-12 rmp |
Gradeablity: 35 | Max.Bucket Digging Force: 14 KN |
Max.Arm Digging Force: 10 KN | Engine Model: 3TE25 |
Power/revolution speed: 18.4/2350 KW/rmp | Tire Model:- |
System Pressure:10 MPa | |
Machine size | |
Dimension Length * Width * Height: 3655*1050*2232 mm | Cabin Height: 2232 mm |
Sproket to ldler: 1231mm | Wheel(Track) Guage: 820 mm |
Minmum ground clearance: 210mm | Tail Swing Radius: 1000mm |
Working range | |
Max.Digging Height:3391 mm | Max.Dupming Height:2290 mm |
Max.Digging Deoth:2125 mm | Max.Digging Depth:1771 mm |
Max.Vertical Digging Depth:2125 mm | Max.Digging Radius:1701 mm |
Max.Dozer Blade Lifting Distance:230 mm | Max.Dozer Blade Cutting Distance:275 mm |
Boom Swing Angle(Left):75 angle | Boom Swing Angle(Right):45 angle |
