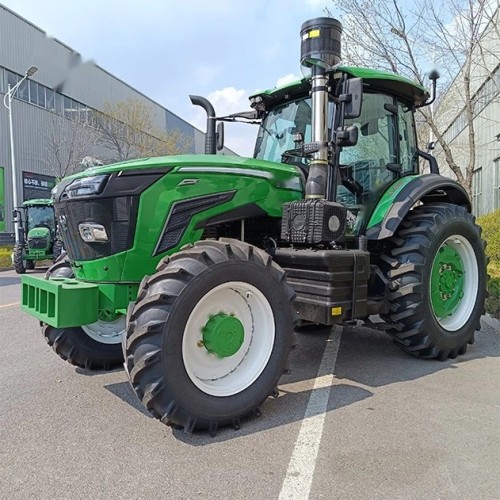

TDF SERIES 120-160 HP TRACTOR

Model: TDF Series (TTF1204-1604)

Review

Description

TDF SERIES 120-160 HP TRACTOR

The TIANTUO TDF Series tractors deliver 120-160 HP power with Yuchai engines for heavy-duty farming. Designed with a spacious air-conditioned cabin, planetary final drives, and a large 480mm ground clearance for superior field performance in large-scale agriculture.

Technical Specifications

MODEL	TTF1204 / TTF1404 / TTF1604
HORSE POWER	120 HP / 140 HP / 160 HP
WHEEL DRIVE	4X4
ENGINE BRAND	YUCHAI, Emission Stage III

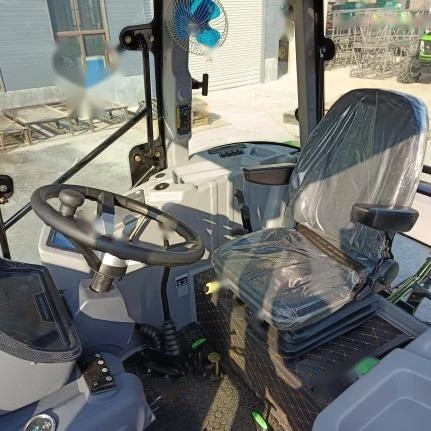

ROPS	Air condition cabin
DIMENSION	5110 x 2150 x 3010 mm
GROUND CLEARANCE	480 mm
WEIGHT	5,360 kgs
WHEEL TREAD	1,720 - 2,010 mm
WHEEL BASE	2,690 mm
GEAR SHIFT	16F + 8R
REAR SUSPENSION	Category III
TIRE	12.4-24 / 16.9-34, 14.9-24 / 18.4-30
PTO	6/8 Splines, 540/1000 RPM

Planetary final drives for enhanced durability and torque. Spacious cabin with air conditioning for operator comfort. Large fuel capacity for extended working hours. Suitable for heavy plowing, deep tillage, and large-scale agricultural operations.
