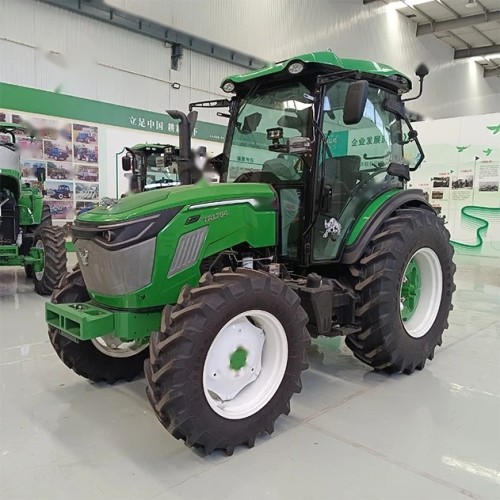

TB SERIES 70-100HP TRACTOR
- Model
- TB Series (TRL704-1004)
Review
Description
The TB Series tractors from TIANTUO offer a versatile 70-100 HP range with multiple engine options from Yuchai, YTO, and Quanchai. With reinforced chassis, spacious cabin, and planetary final drives, these tractors deliver reliable power for heavy-duty farming operations. Reinforced chassis with planetary final drives for durability. Multiple engine options for flexible power selection. Comfortable cabin with air conditioning available. Suitable for heavy plowing, tillage, and transport applications.TB SERIES 70-100HP TRACTOR
Technical Specifications
MODEL TRL704 / TRL804 / TRL904 / TRL1004 HORSE POWER 70 HP / 80 HP / 90 HP / 100 HP WHEEL DRIVE 4X4 ENGINE BRAND YUCHAI / YTO / QUANCHAI ROPS Roll bar and roof / Air condition cabin DIMENSION 4180 x 1950 x 2950 mm GROUND CLEARANCE 420 mm WEIGHT 3,500 kgs WHEEL TREAD 1,300 / 1,400 / 1,450 mm WHEEL BASE 2,080 mm GEAR SHIFT 12F + 12R 3-POINT Category II TIRE 9.5-24/14.9-30, 12.4-24/18.4-30, 320/85R24-460/85R30 Radial PTO 6 splines, 35mm, 540/1000 RPM FUEL TANK 90 Liters
