3Y SERIES 100-120 HP TRACTOR
- Model
- 3Y Series (TN1004-X/TN1204-X)
Review
Description

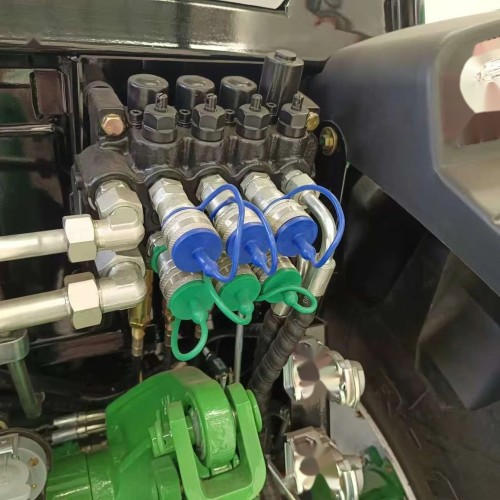

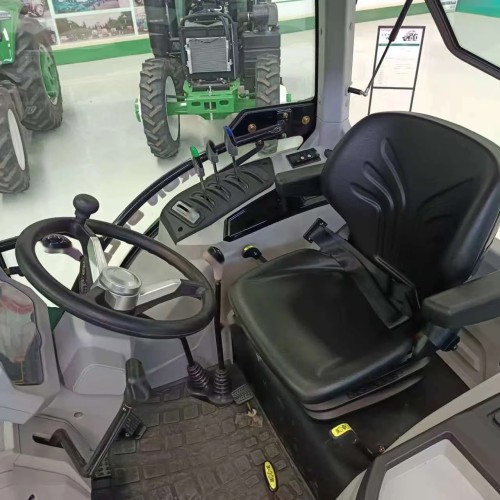

The 3Y Series tractors from TIANTUO deliver 100-120 HP power with Yuchai engines for versatile farming operations. Featuring a spacious A/C cabin, 12+12 gear shift, and Category II Plus rear suspension, these tractors combine power and comfort for demanding agricultural tasks. Air-conditioned cabin for operator comfort during long working hours. Powerful hydraulic system for efficient implement operation. Wide wheel tread range for adaptable row spacing. Suitable for tillage, seeding, and transport applications across diverse farm sizes.3Y SERIES 100-120 HP TRACTOR
Technical Specifications

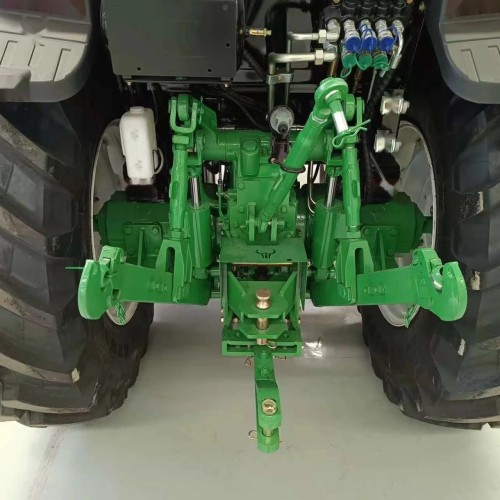

MODEL TN1004-X / TN1204-X HORSE POWER 100 HP / 120 HP WHEEL DRIVE 4X4 ENGINE YUCHAI, Emission Stage III ROPS Air condition cabin DIMENSION 4600 x 2100 x 2950 mm GROUND CLEARANCE 400 mm WEIGHT 4,345 kgs WHEEL TREAD 1,300 - 1,950 mm WHEEL BASE 2,250 mm GEAR SHIFT 12F + 12R REAR SUSPENSION Category II Plus TIRE 12.4-24 / 16.9-34 Inch PTO 6/8 Splines, 540/1000 RPM
