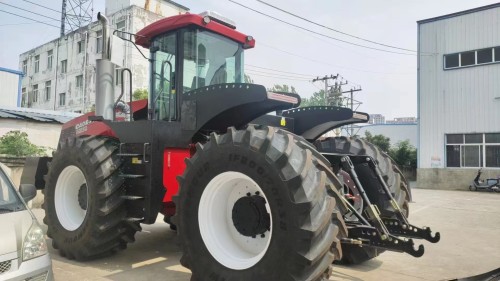

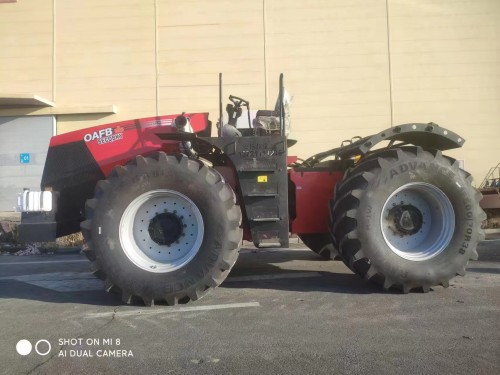

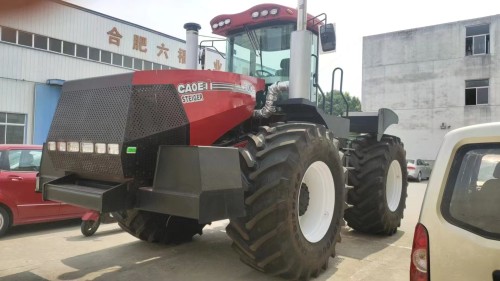

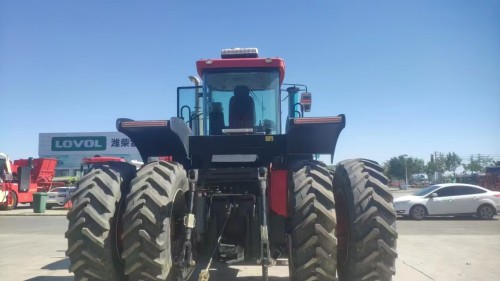

460HP Agricultural Tractors | OEM & ODM Solutions for Wholesale Distributors, Importers, and Brand Partners | Superior After-Sales Support & Extensive Spare Parts Supply
- Model
- ATL4604
Item specifics
- Power Shift
- Auto
- Complete machine type
- wheel
- Whole machine drive type
- 8-wheel drive
- Overall application
- General Purpose
- Overall machine dimensions
- 7000L×4150W×3850 H(mm)
- Wheelbase or track ground contact length
- 2950 mm
- Common wheel track (front/rear) or track gauge
- 4150/4150
- Minimum usable mass
- 135000 kg
- Standard counterweight (front/rear)
- 1080/720 kg
- Number of gears (forward/reverse)
- 24/24
Review
Description
Technical Data
ATL4604 (Dual-plate) |
||
Complete machine type |
/ |
wheel |
Whole machine drive type |
/ |
8-wheel drive |
Overall application |
/ |
General Purpose |
Overall machine dimensions (length × width × height and location) |
mm |
7000×4150×3850 (Warning light top) |
Wheelbase or track ground contact length |
mm |
2950 |
Common wheel track (front/rear) or track gauge |
mm |
4150/4150 |
Wheelbase (front/rear) adjustment method |
/ |
4150/4150 |
Minimum ground clearance and location |
mm |
420 (bottom of fuel tank bracket) |
Center distance of gearbox gear pair shaft hole |
mm |
160 |
Minimum usable mass |
kg |
135000 |
Standard counterweight (front/rear) |
kg |
1080/720 |
Minimum usage ratio quality |
kg/kW |
43.74 |
Number of gears (forward/reverse) |
/ |
24/24 |
Number of gears in the main transmission |
/ |
12 |
Number of secondary transmission gears (including creeper gear) |
/ |
44959 |
Maximum design theoretical speed |
km/h |
33.52 |
Engine Model |
/ |
WP13.460 |
Engine structure type |
/ |
Inline, water-cooled, turbocharged intercooled, high-pressure common rail |
Engine intake method |
/ |
Supercharged Intercooler |
Number of engine cylinders |
/ |
6 |
Engine rated power |
kW |
338.2 |
Engine rated net power |
kW |
368 |
Engine rated speed |
r/min |
2200 |
Engine cooling method |
/ |
Water cooling |
Steering system type |
/ |
Fully hydraulic |
Steering system steering mechanism |
/ |
steering wheel |
Steering system steering mechanism type |
/ |
Front wheel steering |
Number of transmission housings |
indivual |
3 |
Gearbox (transmission) type |
/ |
Mechanical planar composition |
Main shift position |
/ |
In the first box |
Main transmission shifting method |
/ |
Mechanical graded gears |
Secondary transmission shifting method |
/ |
Mechanical graded gears |
Tire type (front/rear) |
/ |
550/85R38 |
Number of tires (front/rear) |
/ |
4/4 |
Types of hydraulic suspension systems |
/ |
Separate |
Suspension device type |
/ |
Rear three-point suspension |
Suspension device category |
/ |
4 categories |
Working device safety valve fully open pressure |
MPa |
19.5±0.5 |
Number of splines on the power output shaft |
/ |
20 |
Standard speed of power take-off shaft |
r/min |
540/1000 |
Optional dual-wheel overall dimensions (length × width × height and location) |
mm |
7000×4150×3800 (Warning light top) |
The optional dual-wheel configuration typically uses the wheel track (front/rear) or track gauge. |
mm |
4150/4150 |
Minimum ground clearance and location of optional rear dual wheels |
mm |
420 (bottom of fuel tank bracket) |
Minimum usable weight after optional dual wheels |
kg |
135000 |
Minimum service weight of dual wheels after optional configuration |
kg/kW |
45.33 |
Front counterweight |
KG |
1080 |
Rear counterweight |
kg |
720 |
Fuel tank capacity |
L |
650 |
